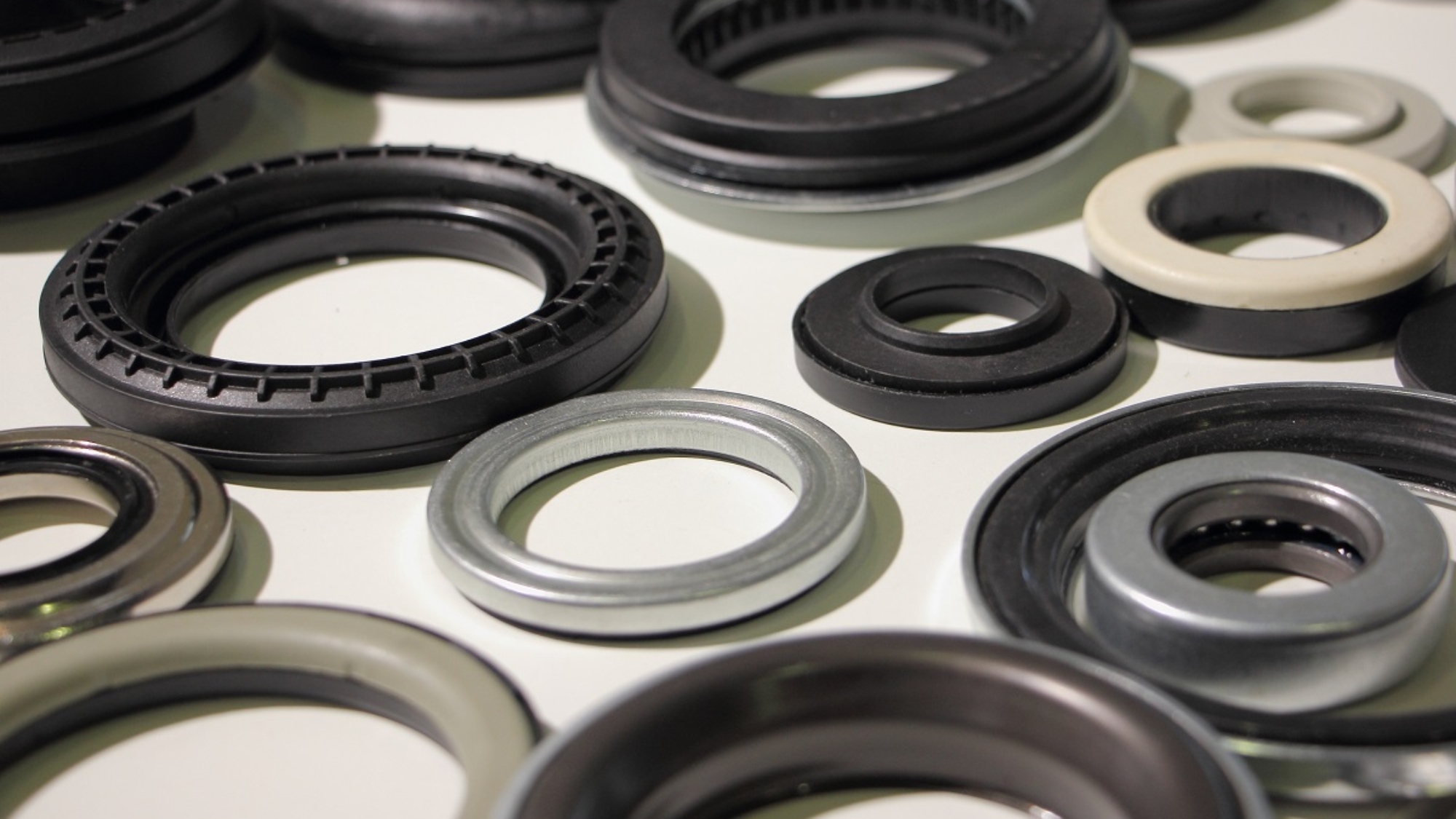

A many new o-rings and bearings on white table, car parts backgr

ผลิตภัณฑ์โอริงและซีล – O-ring and Seal

by

Select by material

Kalrez®(FFKM) – Perfluoroelastomer Benefits: The best combination of chemical and high temperature resistance of any elastomer Excellent resistance to o-ring01petroleum-based fluid, polar solvents, acid, steam and the majority chemical that attack other elastomers. FDA approval for pharmaceuticals and food processing Temperature: -29 to +327 °C Limitations: Limited at low temperature and inferior resistance to fluorinated solvents

FKM – Fluoroelastomer (Viton ) Benefits: Outstanding resistance to high heat Excellent resistance to oil, gasoline, hydraulic fluids and hydrocarbon solvents Very good resistance to weather, oxygen, ozone, and sunlight; good flame retardance. Temperature: -40 to +260 °C Limitations: Poor resistance to ether, ketone, amine and chlorosulfonic acid

NBR – Nitrile Rubber Benefits: Superior resistance to petroleum-based hydraulic fluids, good resistance to hydrocarbon solvents, very good resistance to alkalis and solvents. Temperature: -57 to +120 °C Limitations: Inferior resistance to ozone, sunlight, weathering and poor resistance to polar solvents and strong acid

EPDM – Ethylene Propylene Benefits: Excellent resistance to ozone, water and steam, alkalis and acids, salt solutions and oxygenated solvents. Temperature: -57 to +150 °C Limitations: Poor resistance to oil, gasoline, and hydrogenated solvents.

VQM – Siliconeo-ring02 Benefits: Outstanding resistance to high heat and excellent flexibility at low temperatures; low compression set Excellent resistance to weather, ozone, sunlight, and oxidation Temperature: -101 to +260 °C Limitations: Poor mechanical properties Inferior resistance to oil, gasoline, and solvents Poor resistance to alkalis and acids.

Select by operating condition

ELASTOMER PERFORMANCE CHART CIL | Creative Innovation Ltd. | Safety And Personal Protective Solutions
Chemicals PDF-download-icon-47146508-updated Chemical resistance table / O-ring material
pressure CIL | Creative Innovation Ltd. | Safety And Personal Protective Solutions
Contact Us CREATIVE INNOVATION LTD. Address : 18 Soi Ramkhamhaeng 30 (Ban Rao), Hua Mak, Bang Kapi, Bangkok 10240 Thailand Telephone: 0-2375-5197 Fax: 0-2732-1778 E-mail: wanpens@elastomer-polymer.com
REQUEST FOR QUOTATION/ ขอใบเสนอราคา 1. Check chemical that contact to o-ring 2. Check operation temperature 3. Check pressure 4. Select standard size




    Standard size :
    ID (mm.)
    CS (mm.)
    OD (mm.)
